Détails sur le produit:
Conditions de paiement et expédition:
|
| Motor:: | Panasonic Servo Motor | Control: | PC |
|---|---|---|---|
| Test Speed:: | 0.1-500mm/min selectable | Accuracy: | ±0.5% |
| Capacity: | 5,10,20,25,50,100,200,500kg optional | Sensor: | USA Sensor |
| pplication: | rubber ,plastic ,nylon ,leather and etc | Design criteria: | ASTM D903,GB/T16491 and etc |
| Maximum trip:: | 1000mm | Driving method: | High precise ball screw |
| Grips: | Different material and test method with different grips | ||
| Mettre en évidence: | GB/T16491 Electronic Universal Testing Machine,Electronic Universal Testing Machine |
||

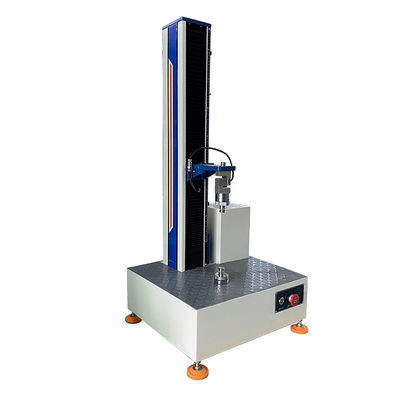

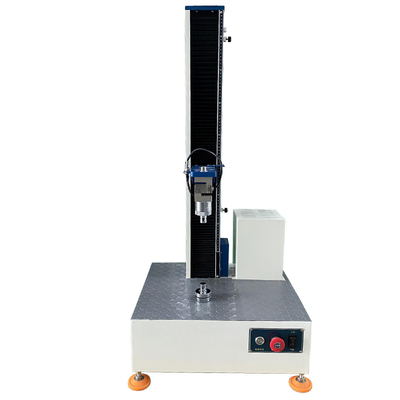

0ne Year Warranty Single Column Computerized Universal Testing Machines 5KN With Metal / Rubber
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7,ASTM C633 and etc.
Uses:
Computerized Universal Testing Machine is designed specially for the adhesive industry. Used to testing peeling strength with different methods. It can perform the 180&90 degree, T-shape peeling test and tensile,shearing&spliting strength test with different clamps.
KeJian tensile strength tester Uses:
Computerized Universal Testing Machine is designed for quick and reliable tensile, compression, bending, shear, peel and fatigue cycling on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character:
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Specifications:
| Capacity choice | 1,2,5,10,20,50,100,200,500kg optional |
| Stroke |
650mm(excluding clamp) |
| Range of speed | 0.5～500mm/min |
| Effective testing space | 120mm |
| Weight | 70kg |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Resolution | 1/250,000 |
| Dimention | (W×D×H)58×58×125cm |
| Motor | Japan Panasonic servo motor |
| Accessories | computer, printer, system operation manual |
| Optional accessories | stretcher, one pair grips |
| Power | 1PH, AC220V, 50/60Hz |
Safety Device:
Stroke protection: upper and low limit protection, prevent over preset
Force protection: system setting
Emergency stop device: Handling emergencies.
Software Functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
6. With many units of measurement, the metric system and british system can switch;
7. Have automatic calibration function;
8. Have user-defined test method function
9. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
12. Can test tensile, compression, peel, fatigue and so on.
FAQ
1. Q: What is your warranty ?
- 12 months product warranty, but lifetime for services.Free Non-consumable components will be provided if any performance failure occurs within 12 months caused by non-human damage.
Tensile Testing Machine
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
Tensile Testing Machine
3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory+ trade (integration),18 years focusing on test instruments field,9 years exporting experience.,warmly welcome to visit our plant(factory), we also support OEM and ODM.
Tensile Testing Machine
4. Q: After an order is placed, when to deliver?
- Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
5. Q: What about the warranty with after - sales services?
- 12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory.
What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.
Tensile Testing Machine
6. Q: What about the services and product' quality?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Engineers would be go abroad to training, repair and others help you need.
